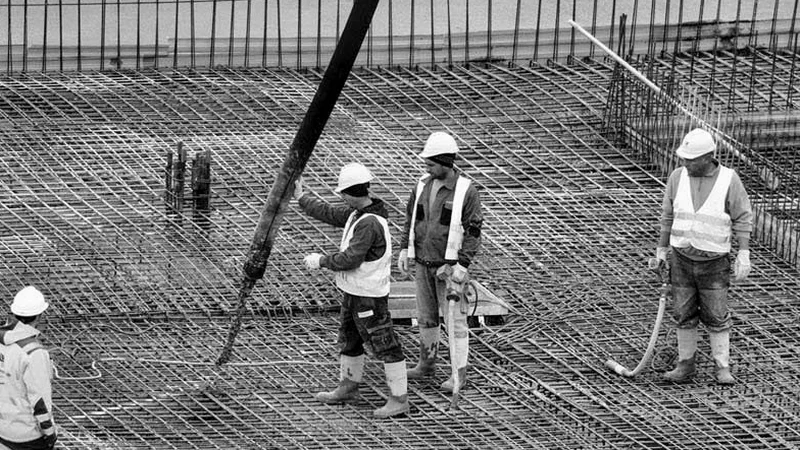

Pittsburgh's topography doesn't forgive assumptions. A city carved by rivers and undercut by abandoned coal mines demands foundation systems that bridge variable ground without cracking under differential movement. The freeze-thaw cycles that chew through asphalt each winter also work on shallow footings, making a monolithic raft foundation the logical choice for structures ranging from medical facilities in Oakland to mixed-use buildings along the Allegheny. Our approach to raft/mat foundation design starts with the stratigraphic reality of the Pittsburgh Low Plateau Section: thin colluvial blankets over shale and sandstone, interrupted by unmapped room-and-pillar voids. We pair subsurface data from test pits with stratigraphic correlations to model how a rigid mat can span subgrade anomalies without excessive thickness. The goal is a foundation that floats over the irregular Pittsburgh geology rather than fighting it point by point.
A well-designed mat foundation in Pittsburgh is essentially a horizontal beam engineered to span the voids and soft spots that make point footings a gamble.
Scope of work in Pittsburgh
Local geotechnical conditions in Pittsburgh
A four-story apartment on a hillside in Mt. Washington started with isolated footings—until the third boring hit a 12-foot void at 38 feet depth, legacy of the Pittsburgh Coal Seam. The structural engineer pivoted to a mat foundation, and that decision saved the project from a stop-work order and foundation redesign six months into construction. The real risk in Pittsburgh isn't just the void you find; it's the one you miss between borings spaced 50 feet apart. A raft foundation doesn't eliminate mine subsidence risk, but it provides the ductility and continuity that lets a building settle as a rigid body rather than shearing apart at expansion joints. Secondary risks include perched groundwater in colluvial slopes—triggering buoyancy concerns for deep mats—and the corrosion of reinforcement from acid mine drainage, which we address with increased concrete cover and sulfate-resistant cement where groundwater chemistry warrants.
Our services
Each mat foundation design passes through geotechnical investigation, structural analysis, and construction-phase QA. Below are the three core deliverables that take a Pittsburgh project from geotechnical report to poured slab.
Geotechnical investigation for mat foundations
Borings and test pits across the building footprint, with laboratory classification of colluvial soils and rock coring where mine voids are suspected. We deliver the bearing capacity, modulus of subgrade reaction, and settlement parameters the structural engineer needs for mat design.
Mat foundation analysis and detailing
Finite element modeling of the soil-structure interaction using plate elements on Winkler springs. We design reinforcement layouts, thickened slab zones at columns, and edge beam details that comply with ACI 318 and Allegheny County plan review standards.
Mine subsidence risk assessment and mitigation design
Review of PA DEP mine maps, geophysical void detection surveys, and subsidence probability analysis. Where risk is confirmed, we design the mat as a bridging structure with deflection tolerance and grouting contingency plans.
Quick answers
What is the typical cost for a raft foundation design in Pittsburgh?
Complete design packages for a raft/mat foundation in the Pittsburgh area generally fall between US$970 and US$4,150, depending on the building footprint, number of column lines, and whether mine subsidence analysis is required. This covers the geotechnical parameter study and the structural slab design with stamped drawings.
When is a mat foundation better than isolated footings in Pittsburgh?
When the site has fill thicker than 6 feet, documented mine voids within 50 feet of the bearing elevation, or highly variable colluvial soils where differential settlement between footings would exceed 1/2 inch. Also common where basement space is needed in high-water-table zones, since the mat can double as a waterproofed floor slab.
How do you verify the subgrade modulus for a Pittsburgh mat foundation?
We derive the modulus of subgrade reaction from a combination of SPT blow counts, CPT tip resistance, and plate load tests on compacted subgrade. For colluvial soils over shale, we adjust the theoretical modulus using local experience factors and back-checks from settlement monitoring on completed Pittsburgh projects.
Does the design account for Pittsburgh's freeze-thaw cycles?
Yes. The mat edge beams extend to 36 inches below exterior grade per Allegheny County requirements, and we specify air-entrained concrete with a maximum water-cement ratio of 0.45 for exterior exposure. Underslab insulation is detailed where heated spaces sit directly on the mat.
