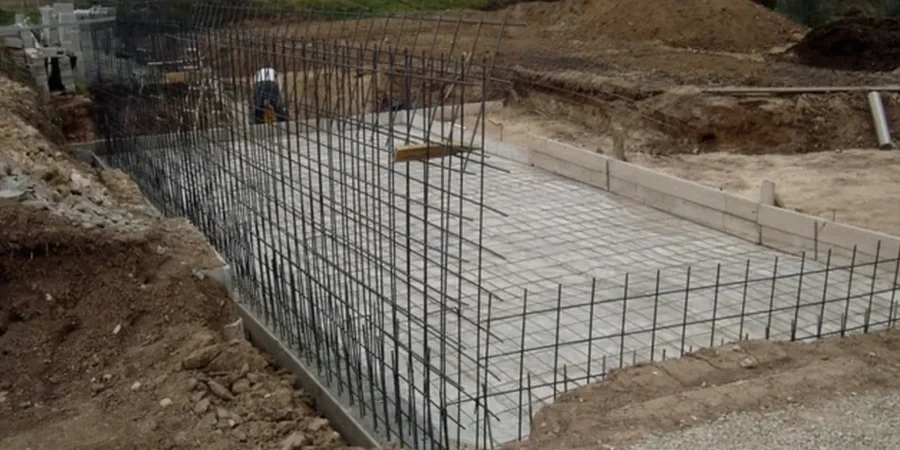

A mixed-use project off Penn Avenue hit rock at 6 feet on one corner and stiff clay at 14 feet on the opposite end—classic Pittsburgh geology where the Pittsburgh red beds and landslide-prone colluvium create abrupt transitions within a single lot. The structural engineer needed a bearing pressure that worked for both conditions without switching to deep foundations. We ran a series of plate load tests on the clay zone and correlated results with SPT N-values from the weathered shale, delivering a net allowable bearing capacity of 3500 psf that satisfied IBC Chapter 18 and let the footings stay shallow. For sites where variable fill overlies the natural bench, we often combine test pits to map the cut-fill contact with laboratory triaxial testing to confirm drained strength parameters before finalizing footing dimensions.
Pittsburgh's colluvial mantle can lose 40% of its undrained shear strength when remolded—undisturbed sampling is non-negotiable for shallow foundation design.
Scope of work in Pittsburgh
Local geotechnical conditions in Pittsburgh
The contrast between Downtown Pittsburgh and the South Hills slopes illustrates the shallow foundation risk spectrum. Downtown, footings bear directly on competent sandstone of the Conemaugh Group—bearing capacity failures are rare, and settlement is elastic and immediate. The South Hills slopes, however, are mantled with 8 to 25 feet of clay-rich colluvium that creeps on slopes as gentle as 12 percent. If a shallow foundation is placed without recognizing the difference, differential settlement can rack the superstructure within the first two freeze-thaw cycles. The worst-case we've documented involved a strip footing that rotated because the contractor assumed uniform bearing on weathered rock when half the footing was actually seated on uncompacted hillside fill. A CPT test profile run parallel to the footing line would have caught the anomaly before concrete was poured.
Our services
Our shallow foundation design package moves from subsurface investigation to a stamped bearing capacity report through a sequence that matches the site's stratigraphic complexity—we avoid generic presumptive values and instead build every recommendation on lab-tested strength parameters and settlement curves calibrated to Pittsburgh's geology.
Bearing Capacity & Settlement Analysis
We compute net allowable bearing pressure using the general shear failure equation with Vesic's bearing capacity factors, applying a factor of safety of 3.0 against ultimate failure. Immediate settlement is estimated through elastic half-space methods, and consolidation settlement is projected from oedometer curves run on undisturbed samples from each distinct bearing stratum. The final report includes allowable pressure tables for strip, square, and rectangular footings at the design embedment depth, plus settlement-versus-time plots for clay layers thicker than 18 inches.
Plate Load Testing & Field Verification
For sites where rock is shallow or where fill thickness is uncertain, we mobilize a 30-inch diameter plate and reaction frame to run ASTM D1194 load tests directly on the bearing surface. Load increments are held until the rate of settlement drops below 0.001 inch per minute, and the resulting load-settlement curve is extrapolated to the footing width using Terzaghi and Peck's sand and clay scaling relationships. This field verification is especially valuable on Pittsburgh hillside lots where the building official wants proof that the colluvium can handle the design pressure before issuing the footing permit.
Quick answers
What does a shallow foundation design package cost for a typical Pittsburgh residential or small commercial project?
For a standard single-family or light commercial project on a single lot in the Pittsburgh area, our shallow foundation design package—including site investigation, bearing capacity analysis, settlement calculations, and a stamped report—typically runs between US$1,870 and US$2,720. The final figure depends on the number of borings or test pits required, whether plate load testing is needed, and the complexity of the stratigraphy. Projects on steep slopes or with thick undocumented fill tend toward the upper end.
How do you determine whether a mat foundation is necessary instead of isolated spread footings?
The decision hinges on the ratio of total anticipated settlement to allowable differential settlement. If our consolidation analysis shows that isolated footings on the variable Pittsburgh colluvium would produce differential settlement exceeding 0.75 inches over a 30-foot span, we recommend a mat foundation to bridge the softer zones and distribute column loads more uniformly. We also lean toward mats when the bearing stratum dips more than 10 percent across the footprint, a condition we encounter regularly on hillside lots in neighborhoods like Mount Washington.
What geotechnical parameters do you need from the field before finalizing a shallow foundation design?
We require SPT N-values or CPT tip resistance at the proposed bearing elevation, undisturbed Shelby tube samples for laboratory strength and consolidation testing, Atterberg limits to confirm the soil classification, and groundwater level observations from at least one boring left open for 24 hours. On Pittsburgh sites with weathered shale near the bearing surface, we also run point load tests on rock core to confirm the unconfined compressive strength of the bedrock, since IBC allows higher bearing pressures on competent rock but requires verification.
